Rugfone RK5

Rugfone RK5

3.5 inch Rugged 4G Keyboard Handheld terminal


THE NEW LONG-LASTING RUGGED 4G KEYPAD TERMINAL FOR AN ADVANCED COMMUNICATION
MULTIPLE CONNECTIVITIES: THE UNIQUE WITH LTE AND WI-FI CONNECTION

Rugfone RK5 offers to your company great performances: rugged and sturdy, but at the same time elegant and refined, created also for the use in the Retail sector. The device can handle falls from max. 1,5m of height. It's IP67 certified against dust and liquids and scratch resistant. All the users can connect easily from any point of the facility, through Wi-Fi or LTE. Choose RK5  mobile computer to connect yourself in an efficient and profitable way!

Rugfone RK5
Rugfone RK5 Rugfone RK5 Rugfone RK5

Rugged and Intelligence

KEY POINTS



  • Bright 3.5" Corning Gorrilla Glass with 5200mAh (option 6000mAh)big battery

    Rugged and Durable MIL-STD-810G and IP67 protection level

    Multiple data connectivities:WI-FI2.4/5,4G/LTE DUAL SIM and Bluetooth 5.0

    Support Android™ 12 USB-C OTG, function keys

    Certification: GMS Google Play Store availability of apps and security

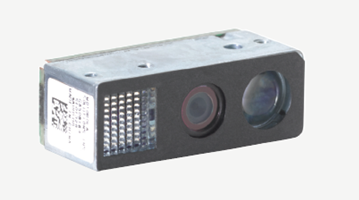

    Scan engine:with Zebra SE5500(or Honeywell N5703) capture almost any 1D/2D barcode within 200ms.

    NFC:Support security payment NXP557chip Protocol with ISO/ IEC14443A/IEC14443B/MiFare S50,S70

    Cold chain version for optional



Rugfone RK5

Characteristics

MARKETS


  • Retail
  • Warehouse
  • Transportation
  • Manufacturing

Techincal sheet

Touch Panel

Capacitive Toughened glass TP support glove operation

Camera

Rear Camera  12MP

Basic Functions

2G_3G_4G_BT Wifi GPS 3D accelerator,E-compass,Proximtity,Light sensor supported

GSM/3G/4G

GSM:2 3 58 WCDMA 1/8

4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

Wi-Fi Bluetooth

BT5.0  support(802.11 a/b/g/n 802.11n/ac

Sim card


Dual micro sim card(T-FLASH card),max 128GB


Charger


Type-C


Earphone


Type-C


Docking station charger

Optional


Audio Video

Audio coding  MPEG4

Video coding


3gp/H.263/MPEG4

Data collection (Optional)

NFC

Support 14443A Topza 14443A MIFARE UL
JIS 6319-4 Sony Felica 14443A/B NXP DESFire

RFID

LF/UHF RFID

P1-P5
Can be customized Key

Scan engine

Self develop  or  Honeywell 5703  or  Zebra 5500

LED

indicator light(red/green/blue)

Industrial and Reliability Design

Shake proof

1-19Hz/1.0mm; 19-200Hz/1.0g


Shock proof

MIL-STD-810G Method516.6  Procedure IV

Protection Grade

IP65

Operating temperature

-20  to 55

Storage Temperature

-40 to 80

RH

5 to  percent

Operating Altitude

Max4500m  15000 feet

ESD

Air discharge no more than 12000V  contact discharge no more than 8000V

Size/Package

193mmX67mmX33mm

Body weight

355g

Warranty

warranty 24 months

Package

USB data cable X1 charger 5V 2A X1  UM X1 kit X1

Accessories

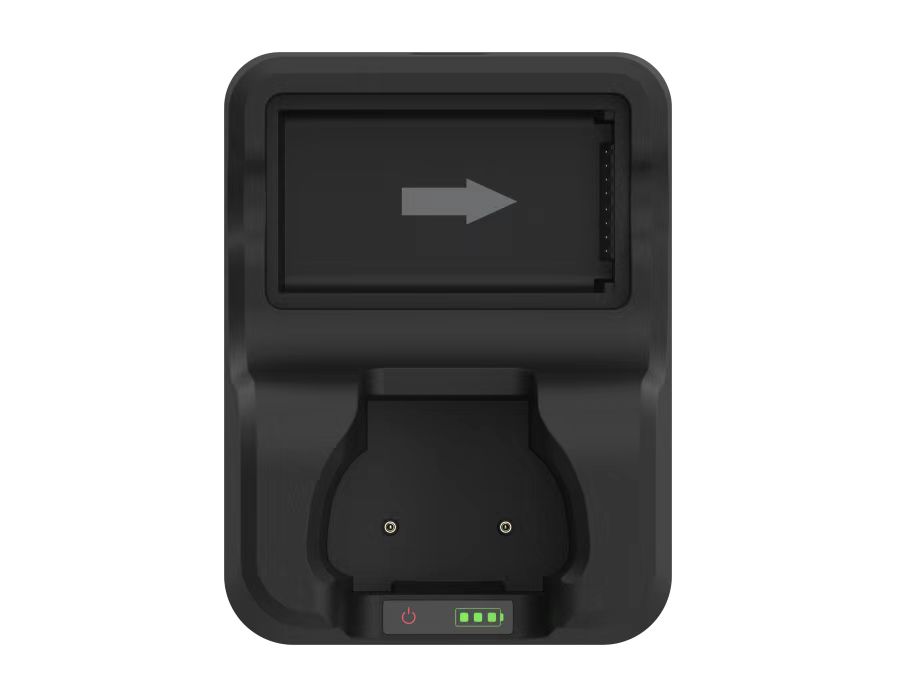

  • Single cradle
  • 4-position cradle
  • Vehicle cradle
  • Extended high capacity battery: 8000 mAh (with dedicated battery cover)
  • Pistol grip

What is in the box

  • Terminal, hand strap, 4000 mAh battery, warranty card, user manual
