Rugfone P8

Rugfone P8

8.0 inch Rugged Tablet with Barcode Scanner


Rugfone P8 is designed certification with IP67 and MIL-STD-810G for industrial and retail warehousing applications in mind. The unit supports 1d and 2d barcode scanners (optional Zebra SE 4710 or Honeywell N5703) that allow you to scan barcodes at a distance of upto 3 feet or more. The tablet boasts a high performance MT6765 based CPU running Android OS 12.OS and up to 4GB of RAM that can easily run your apps without any effort.Rugfone P8 supports a large battery and with built-in OS power optimization can run up to 8 hours or more.

Rugfone P8 has several hot buttons for quick access to key features. This allows you to operate the unit easily with your gloves on making it ideal for environments such as warehouses and plants where workers typically operate the units with safety wear. NFC payment with NXP chip, support ISO/IEC 14443 A, ISO/IEC 14443 B,MiFare S50.



Rugfone P8
Rugfone P8 Rugfone P8 Rugfone P8

KEY POINTS



  • Display:8.0inch IPS resolution: 1280*80( Option: FHD(1920*1200 1000NT )


    Operating System: Android 12.0 GMS Google Play Store availability of apps and security.

    CPU:MediaTek MT6765 Octa core 2.0Ghz memory:4+64GB or 6+128GB

    Camera: Rear camera  8.0MP or 13MP with PDAF and flashlight

    Interface:Type-C interface supporting USB 2.0 and OTG Memory

    Battery: 3.85V 8000mAh support 18W fast charging

    Scan engine:Zebra SE4710 or Honeywell N5703 capture 1D/2D barcode within 200ms.

    NFC:NXP557 chip Protocol with ISO/IEC14443A/IEC14443B/MiFare S50,S70


Rugfone P8

Characteristics

MARKETS


  • Retail
  • Warehouse
  • Transportation
  • Manufacturing

Techincal sheet

SpecificationS


Touch Panel

Capacitive / toughened glass TP support glove touch/spray

Camera

Front5.0MP   Rear13.MP  Option 16MP  20MP


Basic Functions


2G/3G/4G/BT/Wifi/GPS/3D accelerator

E-compass

proximity

sensor

Light sensor supported


GSM/3G/4G


GSM:B5/850;B8/900;B3/1800;B2/1900


CDMA 1X(Only support China Telecom)


3G:WCDMA B1/2100;B2/1900;B5/850;B8/900


3G:CDMA2000/EVDO(Only support China Telecom)


3G:TD/SCDMA(Only support China Mobile)


4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28


4G: TDD: B38/B39/B40/B41(Only support China Mobile)


Wifi/BT

BT5.0 Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP.

Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi


Battery

8000mAh(detachable)


Hardware

Sim card

Dual micro sim card;(T-FLASH card)max 128GB


Charger

USB Type-C


DC

3.5mm DC


Data interface

USB Type-C


Docking station charger

Support


Audio/Video

Audio coding

MPEG4


Video coding

3gp/H.263/MPEG4


Data collection & Option Module

NFC

Basic configuration, built-in antenna; NXP chip, support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70,

reading distance 0-5cm, depending on tag types


F1/F2 Key

Support user-defined

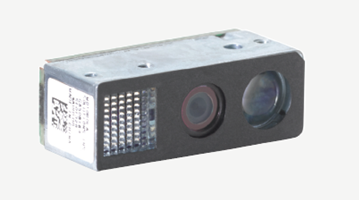

Scanner

Zebra SE 4710 2D (Support Honeywell N6603)


PTT Key

Support


NFC

indicator light(red/green/blue)


Industrial and Reliability Design

Shock-proof

1-19Hz/1.0mm 19-200Hz/1.0g

Dropproof

MIL-STD-810G/Method516.6/Procedure IV


Waterproof

Class 8 (SGS)


Dustproof

Class 6 (SGS)


Operating temperature

-20C to 55C


Storage Temperature

-40C to 80C


RH

5% to 95%

Operating Altitude

Max 4500 m


ESD

air discharge no more than12000V

contact discharge no more than 8000V


Size/Package/Warranty terms/OEM

SIZE

295mm*196mm*76mm


Single weight

780g


Warranty and OEM

support OEM, warranty 24 months

Package

USB data cable x1, charger 5V/2A x1, user manual x1, k

Accessories

  • Desk cradle
  • Vesa Adaoter bracket
  • Hand strap
  • Zebra SE4710
  • Honewell N5703

What is in the box

  • Terminal, hand strap, 4000 mAh battery, warranty card, user manual
