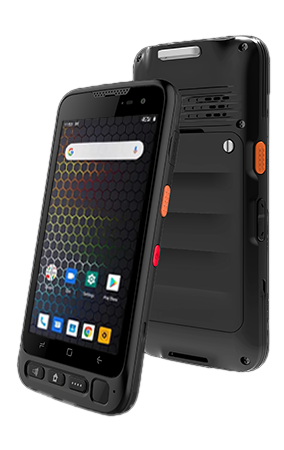

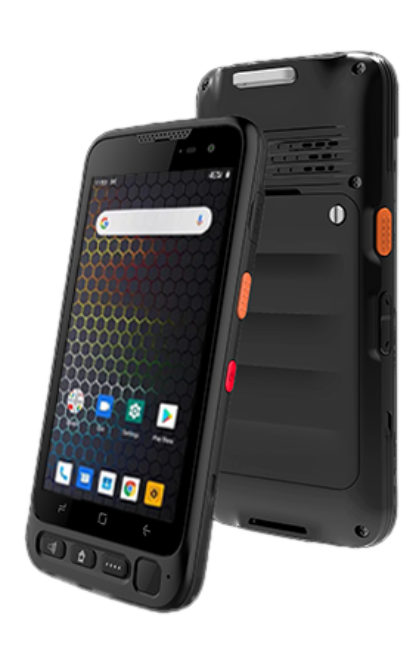

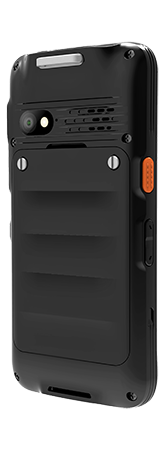

Rugfone RF8 UHF

Rugfone RF8 UHF

5.0 inch 4G High-performance RFID Terminal

Rugfone RF8 UHF deploys UHF RFID module which provides perfect performance in UHF reading and writing. can save cost and improve efficiency for customers.Supporting protocols of EPC global C1Gen2 and ISO18000-6C and various frequency bands, It can read common RFID tags with high accuracy and speed in asset tracking, apparel inventory management, fleet management, toll road, warehousing, finance, etc.


Rugfone RF8 UHF
Rugfone RF8 UHF Rugfone RF8 UHF Rugfone RF8 UHF

KEY POINTS

Bright 5inch Corning Gorrilla Glass support glove operation.

Support Android™ 12 USB-C OTG, function keys

GMS certification Google Play Store available

Integrated 1D 2D barcode scanner : Zebra SE4710 or Honeywell N5703 or Self developped

WI-FI2.4/5,4G/UMTS/LTE DUAL SIM and Bluetooth 5.0

Support security payment NFC  NXP557 chip Protocol with ISO/ IEC14443A/IEC14443B/MiFare S50,S70

RFID UHF Communication Protocol

ISO18000-6C/EPC Class1 Gen2, Reading Distance Up to 3m

Frequency

FCC (NA,SA) 917.4-927.2 MHz/ETSI (EU) 865.6-867.6 MHz

TRAI (India) 865-867 MHz/KCC (Korea) 917-923.5 MHz

MIC (Japan) 916.8-923.4 MHz/ACMA (Australia) 920-926 MHz

SRRC-MII (China) 920.1-924.9 MHz

Rugfone RF8 UHF

Characteristics

MARKETS


  • Retail
  • Warehouse
  • Transportation
  • Manufacturing

Techincal sheet

Specifications

Touch Panel


Capacitive / toughened glass TP support glove touch

Camera


Rear 8.0MP Option13.0MP /16.0MP/20.0MP

Basic Functions


2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported

GSM/3G/4G


GSM:B5/850;B8/900;B3/1800;B2/1900

CDMA 1X(Only support China Telecom)

3G:WCDMA B1/2100;B2/1900;B5/850;B8/900

3G:CDMA2000/EVDO(Only support China Telecom)

3G:TD/SCDMA(Only support China Mobile)

4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

4G: TDD: B38/B39/B40/B41(Only support China Mobile)

Wifi/BT


BT5.0 Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP
Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi

Hardware


Sim card
Dual micro sim card (T-FLASH card),max 128GB


USB

Type-C


Earphone
3.5mm

Data interface
USB Type-C

Docking station charger
Support

Audio/Video
Audio coding
MPEG4

Video coding
3gp/H.263/MPEG4

Data collection and Option Module
Fingerprint
Support

NFC
Support 14443A Topza/14443A MIFARE UL/JIS 6319-4 Sony Felica/14443A/B NXP DESFire

RFID

LF/UHF RFID

Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Operating spectrum range: 902Mhz -928Mhz,865MHz -868MHz(Optional)

Output range:0-26 dBm

Output accuracy: +/- 1dB

Output power level: +/- 0.2dB

The label is sensitive and stable

Line polarization plate antenna: 2-3m

F1/F2 Key
Support user-defined

Scanner
Zebra SE 4710 2D (Support Honeywell N6603)

LED
indicator light(red/green/blue)

Industrial and Reliability Design


Shockproof
1-19Hz/1.0mm; 19-200Hz/1.0g

Dropproof
MIL-STD-810G/Method516.6/Procedure IV

Waterproof
Class 7 (SGS)

Dustproof
Class 6 (SGS)

Operating temperature
\ -20C to 55C

Storage Temperature
\ -40C to 80C

RH
5% to 95%

Operating Altitude
Max  4500 m equal 15000 feet

ESD
air discharge no more than12000V ,contact discharge no more than 8000V

Size/Package/Warranty terms/OEM
SIZE
165mmx76mmx16mm

Single weight
510g

Warranty and OEM
support OEM warranty 24 months

Package
USB data cable x1, charger 5V/2A x1, user manual x1, kit x1

Accessories

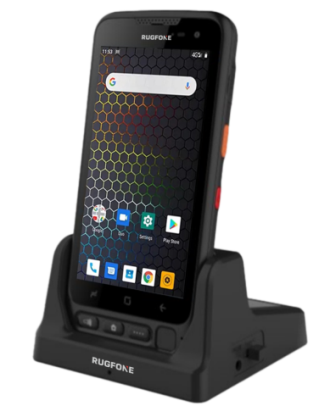

  • Single cradle
  • 4-position cradle
  • Vehicle cradle
  • Extended high capacity battery: 8000 mAh (with dedicated battery cover)

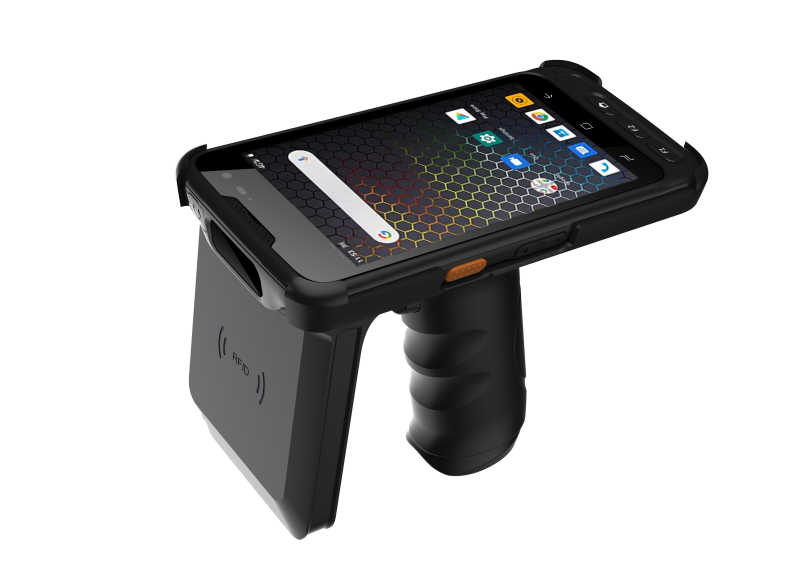

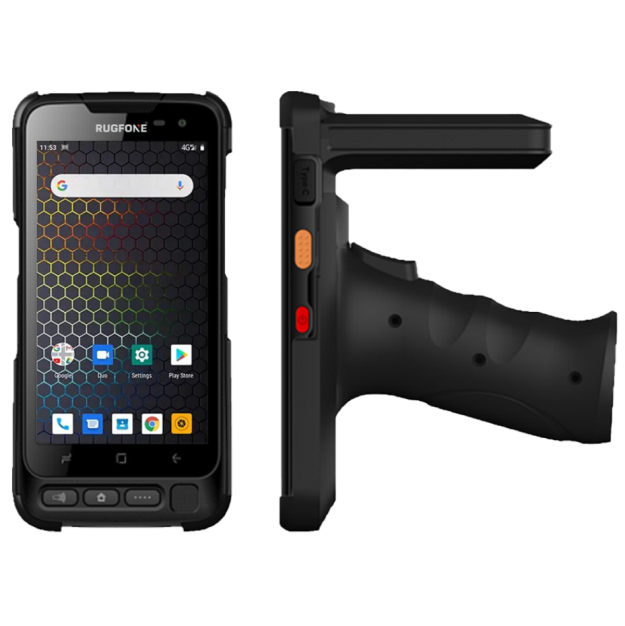

  • Pistol grip

What is in the box

  • Terminal, hand strap, 4000 mAh battery, warranty card, user manual
