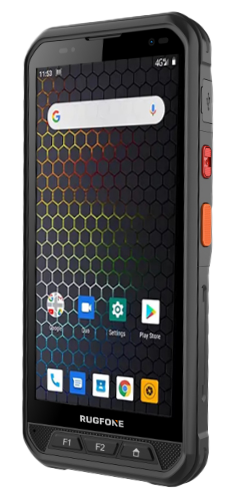

Rugfone RF8

Rugfone RF8

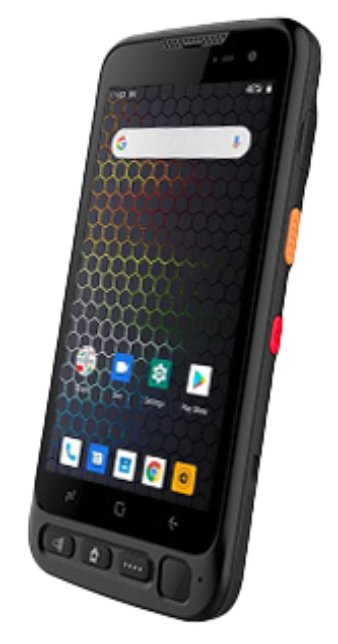

5.0 inch Rugged Mobile Computer with Barcode Scanner

Rugfone RF8 rugged mobile computer can save cost and improve efficiency for customers. The management of  Rugfone RF8 is easy and fast thanks to Android which offers a new intuitive platform, guaranteeing an extraordinary user experience. All the business features of theRF8 improve the capabilities of employees, maximizing productivity and streamlining workflows. Moreover, the device supports LTE data for both open and closed environments. Choose Rugfone RF8 to offer an advanced and cost-effective solution



Rugfone RF8
Rugfone RF8 Rugfone RF8 Rugfone RF8

KEY POINTS

Bright 5.0 inch Corning Gorrilla Glass support glove operation.

Operating System: Android 12.0

CPU:MediaTek MT6765 Octa core RAM+ROM:4+64GB or 6+128GB display 1280 x 720

Rugged and Durable MIL-STD-810G and IP67 protection level

WI-FI2.4/5,4G/UMTS/LTE DUAL SIM and Bluetooth 5.0

Support Android™ 12 USB-C OTG, function keys

GMS certification Google Play Store available

Integrated 1D 2D barcode scanner : Zebra SE4710 or Honeywell N5703

Support security payment NFC  NXP557 chip Protocol with ISO/ IEC14443A/IEC14443B/MiFare S50,S70



Rugfone RF8

Characteristics

MARKETS


  • Retail
  • Warehouse
  • Transportation
  • Manufacturing

Techincal sheet

Specifications

Touch Panel


Capacitive / toughened glass TP support glove touch

Camera


Rear 8.0MP Option13.0MP /16.0MP/20.0MP

Basic Functions


2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported

GSM/3G/4G


GSM:B5/850;B8/900;B3/1800;B2/1900

CDMA 1X(Only support China Telecom)

3G:WCDMA B1/2100;B2/1900;B5/850;B8/900

3G:CDMA2000/EVDO(Only support China Telecom)

3G:TD/SCDMA(Only support China Mobile)

4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

4G: TDD: B38/B39/B40/B41(Only support China Mobile)

Wifi/BT


BT5.0 Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP
Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi

Hardware


Sim card
Dual micro sim card (T-FLASH card),max 128GB


USB

Type-C


Earphone
3.5mm

Data interface
USB Type-C

Docking station charger
Support

Audio/Video
Audio coding
MPEG4

Video coding
3gp/H.263/MPEG4

Data collection and Option Module
Fingerprint
Support

NFC
Support 14443A Topza/14443A MIFARE UL/JIS 6319-4 Sony Felica/14443A/B NXP DESFire

RFID

LF/UHF RFID optional


F1/F2 Key
Support user-defined

Scanner
Zebra SE 4710 2D (Support Honeywell N6603)

LED
indicator light(red/green/blue)

Industrial and Reliability Design


Shockproof
1-19Hz/1.0mm; 19-200Hz/1.0g

Dropproof
MIL-STD-810G/Method516.6/Procedure IV

Waterproof
Class 7 (SGS)

Dustproof
Class 6 (SGS)

Operating temperature
\ -20C to 55C

Storage Temperature
\ -40C to 80C

RH
5% to 95%

Operating Altitude
Max  4500 m equal 15000 feet

ESD
air discharge no more than12000V ,contact discharge no more than 8000V

Size/Package/Warranty terms/OEM
SIZE
165mmx76mmx16mm

Single weight
510g

Warranty and OEM
support OEMwarranty 24 months

Package
USB data cable x1, charger 5V/2A x1, user manual x1, kit x1

Accessories

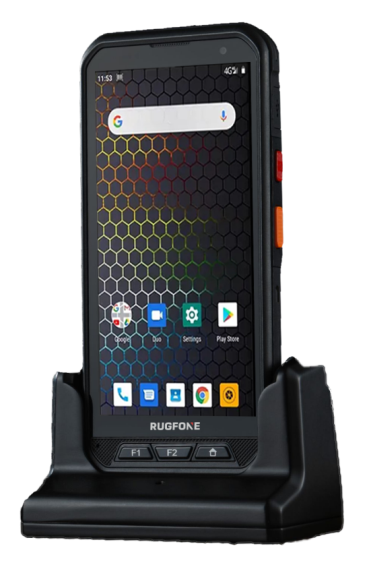

  • Single cradle
  • 4-position cradle

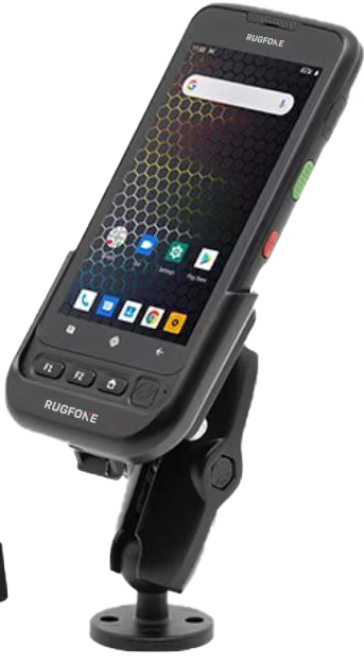

  • Vehicle cradle
  • Extended high capacity battery: 8000 mAh (with dedicated battery cover)

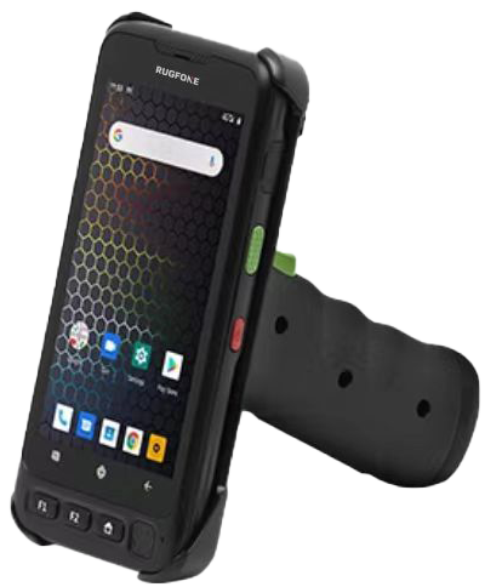

  • Pistol grip

What is in the box

  • Terminal, hand strap, 4000 mAh battery, warranty card, user manual
