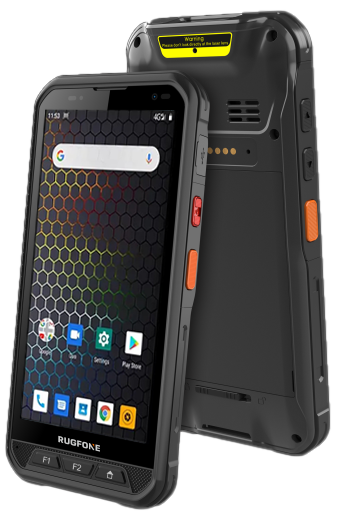

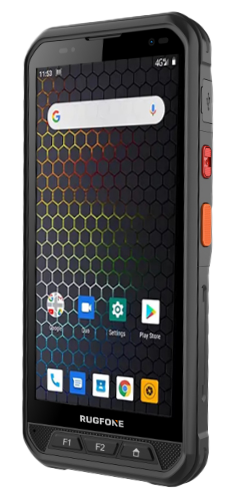

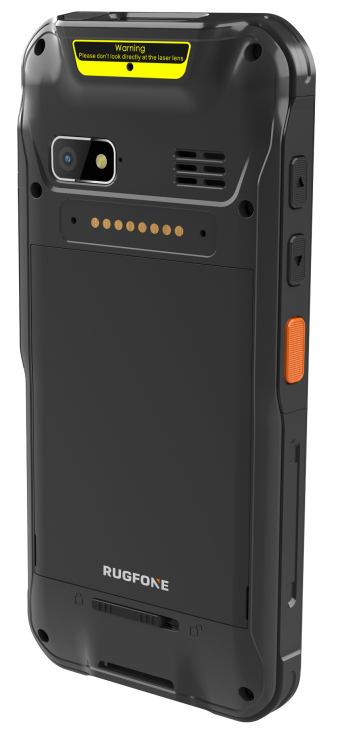

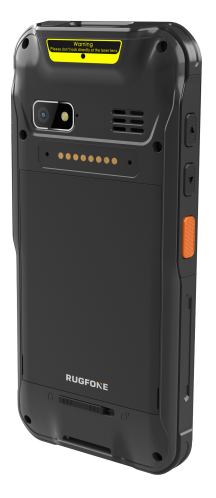

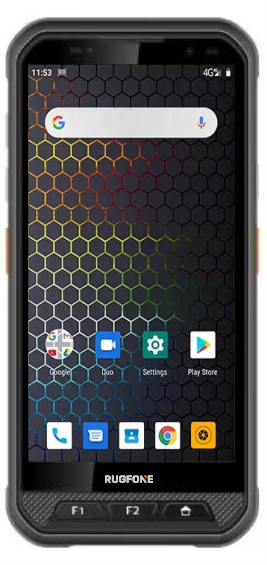

Rugfone RF9

Rugfone RF9

5.7 inch Enterprise-level Mobile Computer

Rugfone RF9 handheld device presents an opportunity for clients to cut costs and enhance operational efficiency. Managing the RF9 is a breeze with Android 12.0 OS, boasting a new, user-friendly interface that guarantees an outstanding user experience. Its business functionalities empower employees, amplifying productivity and refining workflows. Additionally, the device supports LTE data connectivity in both open and restricted environments. Embrace Rugfone RF9 for an advanced, cost-efficient solution that drives success.

Rugfone RF9
Rugfone RF9 Rugfone RF9 Rugfone RF9

KEY POINTS



Display: 5.7-inch IPS Octa core 2.0Ghz display 1440 x 720

Operating System: Android 12.0 CPU:

MediaTek MT6765 RAM+ROM:4+64GB or 6+128GB

support Camera: Rear camera  8.0MP or 13MP/20MP with PDAF and flashlight

Interface:Type-C interface supporting USB 2.0 and OTG Memory

Battery: 3.85V 4800mAh (Option 8000mAh)

Integrated 1D 2D barcode scanner : Zebra SE4710 or Honeywell N5703 capture almost any 1D/2D barcode within 200ms.

NFC:Support security payment NXP557chip Protocol with ISO/ IEC14443A/IEC14443B/MiFare S50,S70


Rugfone RF9

Characteristics

MARKETS


  • Retail
  • Warehouse
  • Transportation
  • Manufacturing

Techincal sheet

Specification summary
• Touch Panel
Capacitive / toughened glass TP support glove touch/spray
• Camera
5.0MP+13.0MP Option16MP,20MP
• Basic Function
2G/3G/4G/BT/Wifi/GPS/3D accelerator,
E-compass,proximtity sensor,Light sensor supported
• GSM/3G/4G
GSM:B5/B8/B3/B2
CDMA 1X
WCDMA B1/B2/B5/B8
3G:CDMA2000/EVDO,TD/SCDMA
FDD-LTE, FDD LTE
• Wifi/BT
(2.4GHz/5Ghz) 802.11 a/b/g/n ,BT v2.1+EDR/BT 3.0+HS / BlT v4.0 (LE)
Hardware
• Sim card
Dual micro sim card/T-FLASH card max 128GB
• Charger
USB Type-C
• Earphone
3.5mm
• Data interface
USB Type-C
• Desk Charger
Support
Audio/Video
• Audio coding
MPEG4
• Video coding
3gp/H.263/MPEG4

Data collection & Option Module
• Extension interface
Support UART
• NFC
Support 14443A Topza, 14443A MIFARE UL, JIS 6319-4 Sony Felica,14443A/B NXP DES Fire etc
• F1/F2 Key
Support user-defined
• Scanner
Zebra SE 4710 2D (Support Honeywell N6603)
• LED
indicator light(red/green/blue)
Industrial & Reliability Design
• Shake-proof
1-19Hz/1.0mm; 19-200Hz/1.0g
• Shockproof
MIL-STD-810G/Method516.6/Procedure IV
• Waterproof
Class 7 (SGS)
• Dustproof
Class 7 (SGS)
• Operating temperature
\ -20C to 55C
• Storage Temperature
\ -40C to 80C
• RH
5% to 95%
• Operating Altitude
Max 4500 m
• ESD
air discharge no more than 12000V ,contact discharge no more than 8000V
Size/Package/Warranty terms/OEM
• SIZE
173x81x17.5mm
• Single weight
300g
• Warranty & OEM
support OEM, warranty 24 months
• Package
USB data cable x1, charger 5V/2A x1, user manual x1, kit x1


Accessories

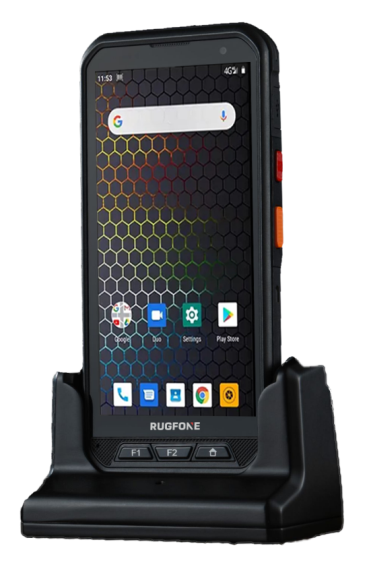

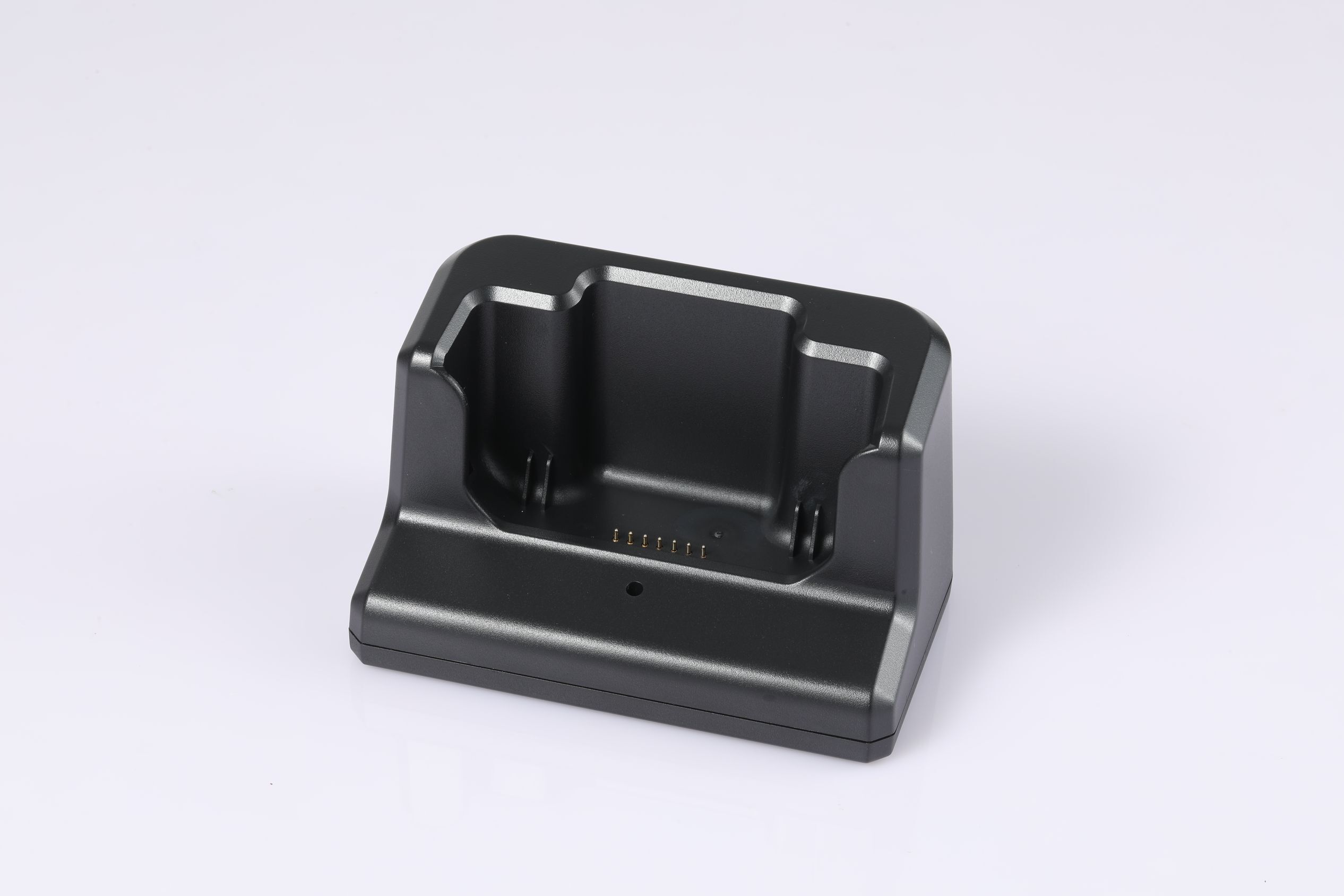

  • Single cradle
  • Hand strap
  • Zebra scan engine 4710
  • Honeywell scan engine 5703

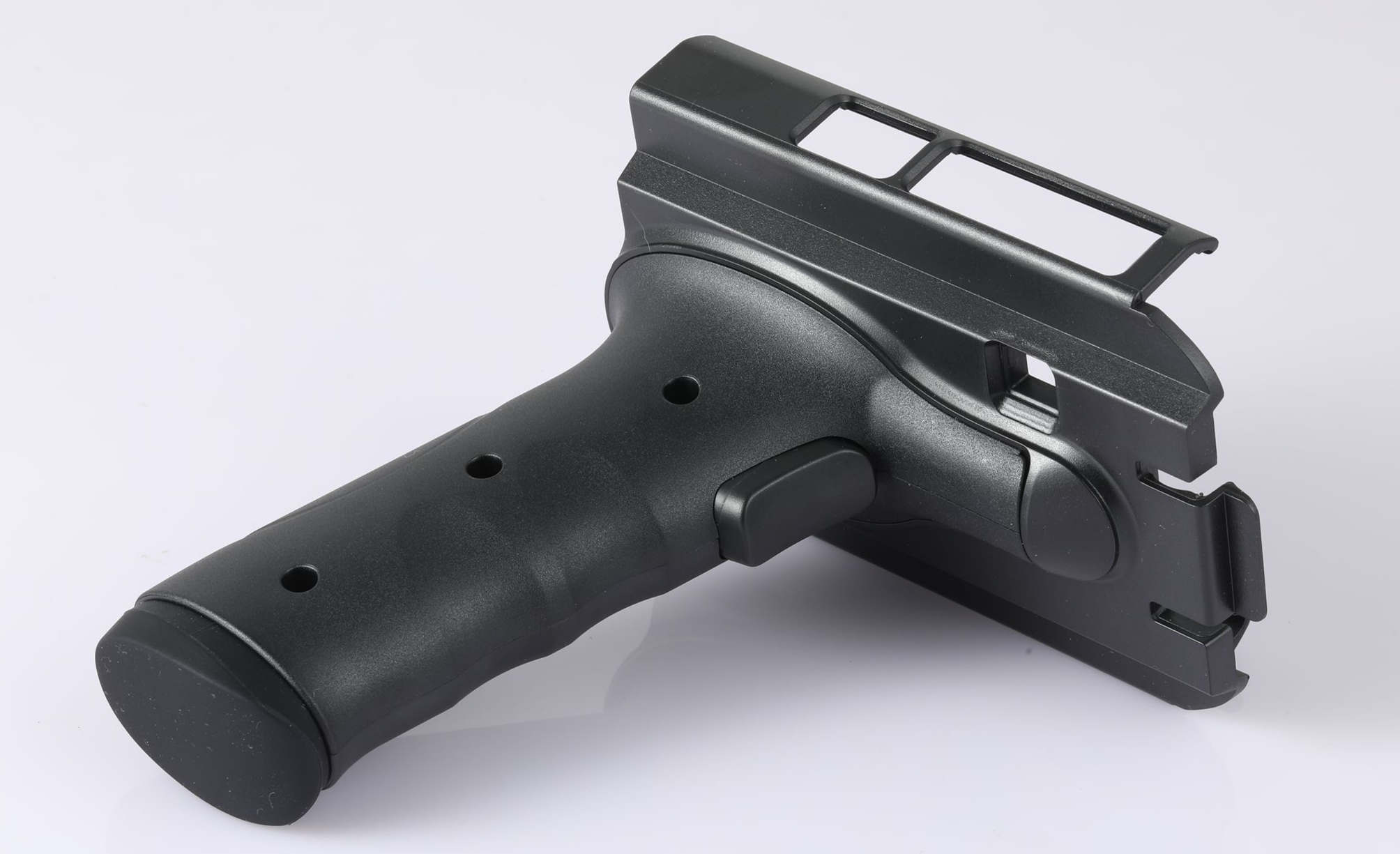

  • Pistol grip

What is in the box

  • Terminal, hand strap, 4000 mAh battery, warranty card, user manual
