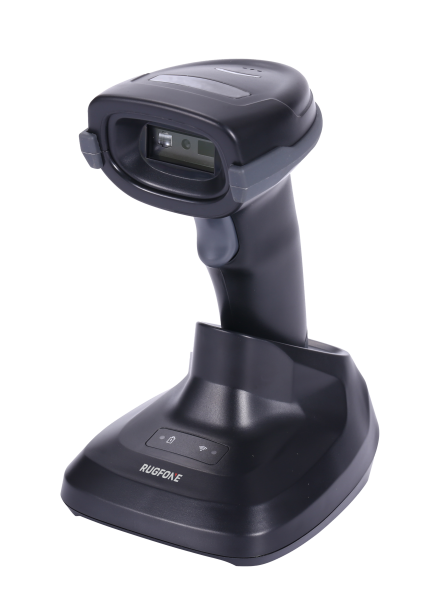

Bluetooth 2D Barcode Scanner

The new Rugfone  S1 1D-2D barcode scanner, wireless and equipped with Bluetooth®, features the most modern design together with a rugged casing and it supports IP42 sealing protection, which is particularly suitable for retail, logistic and warehouse markets. S1 is equipped with useful functions that makes customer's operations easier and allows to save space. Equipped with excellent performance in reading most 1D barcodes and 2D, it facilitates the use of data and increases productivity. It supports barcode scanning with up to 250 mm reading depth for the majority of 1D, 2D barcodes and Rugfone S1 scanner can be used both in manual mode (button) and in automatic mode, using the supplied cradle.

S1
S1 S1 S1

KEY POINTS

Resolution:1280X800 Pixels
Transmission Mode: 2.4G+Bluetooth
Transmission distance: 100meters
Battery: 3.7V-2200mAh
Working hours: 7-10days
Storage barcode: 100000 barcodes
Scan speed: 500scans/sec
Falling strength: 2m fall to concrete
Manual trigger/ Auto-Continuous/Auto-Induction
Barcodes type: Standard 1D 2D bar codes
Base: Charging and receiving signal function
Support the setting of special barcode

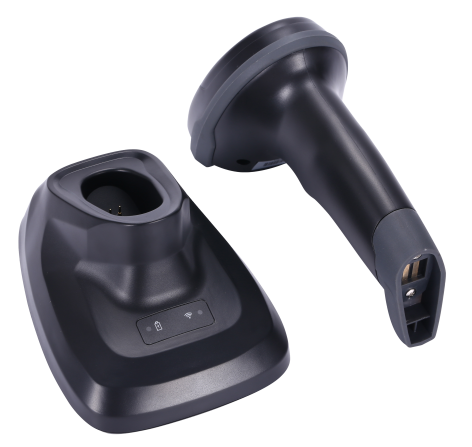

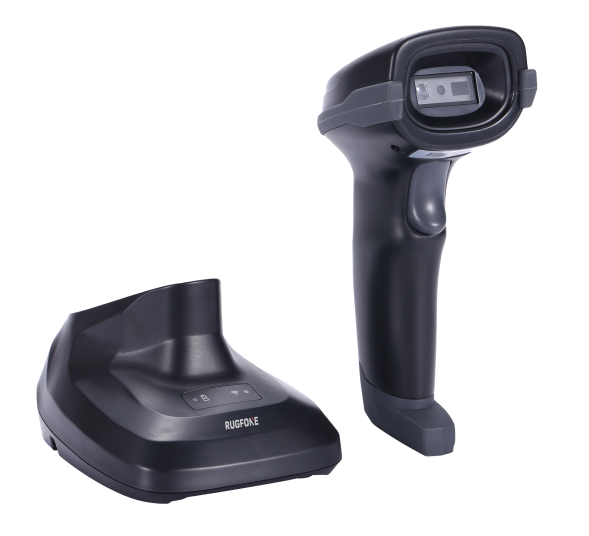

With charging base
S1

Characteristics


Techincal sheet

Specifications


Wireless transmission distance

Bluetooth 10-15 meters, 2.4G Wireless 50m


Illuminant

620nm visible red light decode


Imaging sensor

CMOS


Resolution

1280x800 Pixels


Precision

>=3.5mil


Minimum contrast

>=25%


Symbologies

1D

CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5,

ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11,

ISBN, INDUSTRIAL25, STANDARD25, Plessey, MSI_Plessey

2D

PDF417, QR, Aztec, DataMatrix, Maxicode


Sensitivity Lean

+/-55C


Rotate

+/-25C

Runout

+/-75C


Package size

180 x145x95mm


Weight

460g


Prompting mode

Buzzer and LED indication


Battery capacity

1800mah


Max Power Dissipation

1176mw


Working voltage

4.2V


Wlectric current

Max 280mA


Working current

84Ma-280mA


Standby current

84mA


Sleep current

No more than 10uA


Charge Current

450mA


Battery charge time

Up to 3.5 hours


Full charge reading barcode

Up to 100,000 times


Enviromental parameter

Storage Temperature

-40C- 60C


Working Temperature

0C - 50C


Relative humidity

0 -95%


Drop height

1.8meters

IP protection level

IP52



Accessories


What is in the box
